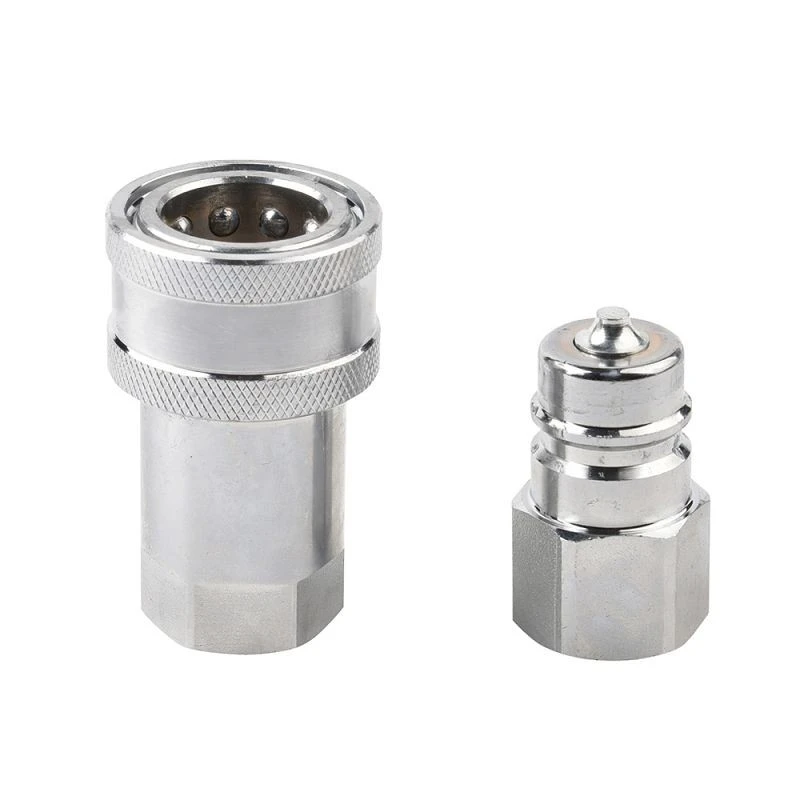

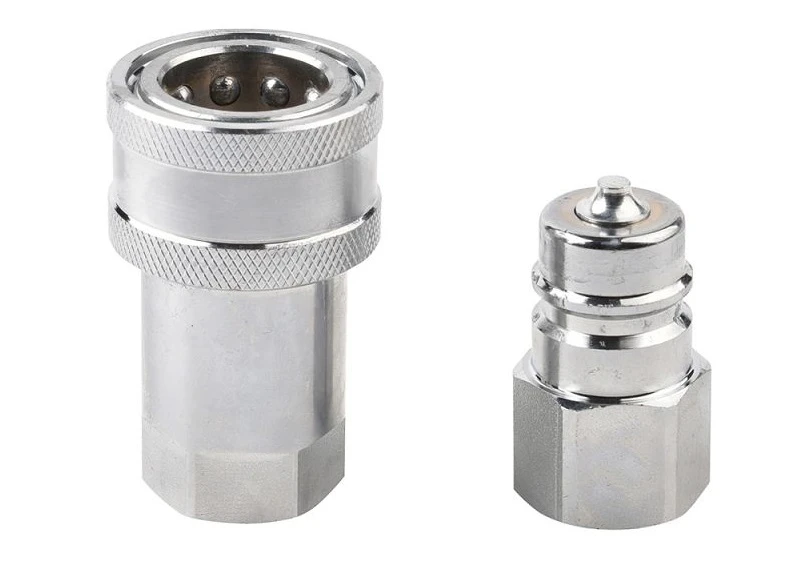

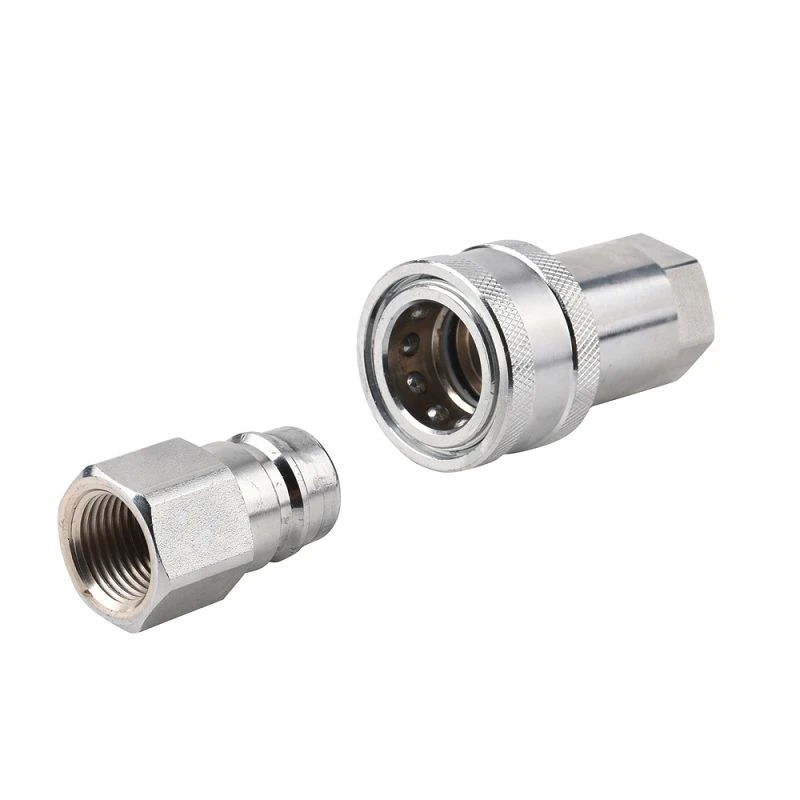

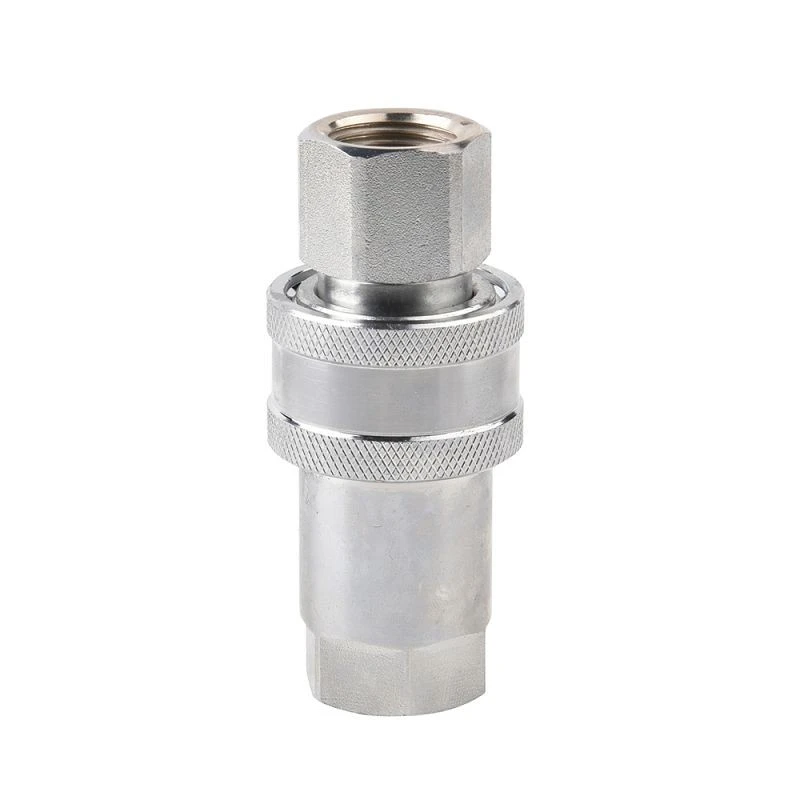

Universal Hydraulic Quick Couplings – KZE Series
The KZE Universal Hydraulic Quick Couplings from the POOLKE KZE Series are designed for reliable connection in general hydraulic systems, mobile equipment and industrial applications requiring durability, safety and efficient fluid transfer. Manufactured according to JB/ZQ4078-97-B requirements, this series provides a practical connection solution for a wide range of hydraulic equipment.
The KZE Series features a durable ball-locking mechanism, hardened components and reliable poppet valve sealing to ensure stable performance under demanding operating conditions. With precision-machined construction and optional PTFE support ring for high-pressure environments, the KZE Universal Hydraulic Quick Couplings provide excellent connection reliability, long service life and flexible application compatibility.
Key Features
Universal Hydraulic Connection Design
Designed for general hydraulic applications, providing a reliable connection solution for industrial equipment and mobile hydraulic systems.
Durable Ball Locking Mechanism
The ball-locking structure ensures secure engagement between coupling and nipple, improving connection stability during operation.
Hardened Components for Long Service Life
Both sleeve and nipple are hardened to improve resistance against brinelling, mechanical shock and repeated coupling cycles.
Reliable Poppet Valve Sealing
The captive valve seal is positively retained by the metal poppet, helping minimize seal washout and damage caused by high-velocity hydraulic fluid.
High Pressure Sealing Support
An optional PTFE support ring is available to improve sealing performance and reduce seal extrusion in high-pressure hydraulic environments.
Precision Machined Construction
The coupling and nipple are precision machined from solid bar stock to ensure consistent quality, strength and long-term reliability.
Applications
The KZE Universal Hydraulic Quick Couplings are suitable for:
- Construction machinery
- Agricultural equipment
- Industrial hydraulic systems
- Hydraulic power units
- Mobile hydraulic equipment
- General hydraulic applications

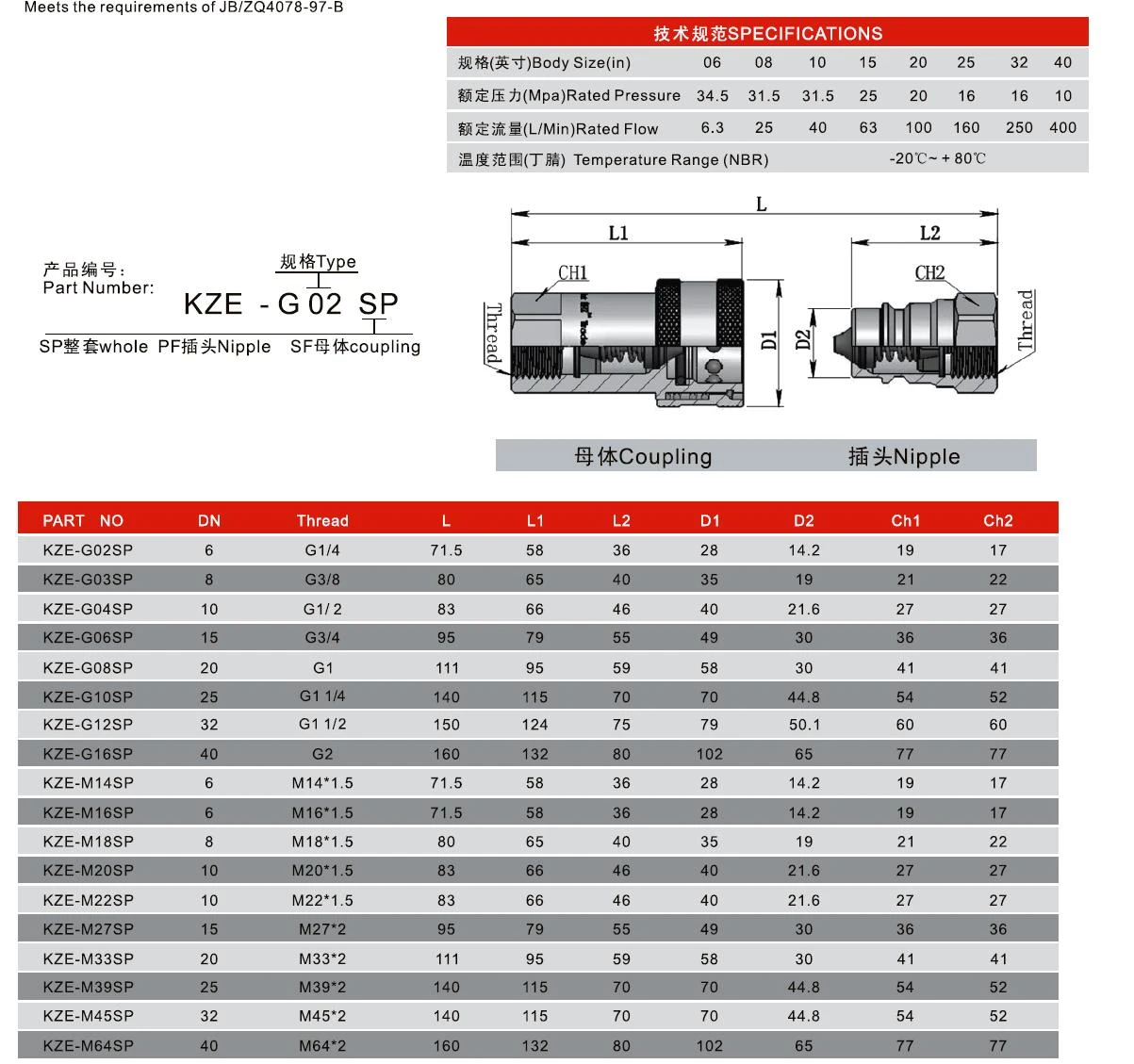

Technical Overview
| Series | KZE | Nipple Material | Hardened Chromium Plated Steel |
| Standard | JB/ZQ4078-97-B | Seal Material | NBR |
| Type | Universal Hydraulic Quick Coupling | Size Range | DN6 – DN40 |
| Valve Type | Poppet Valve | Rated Pressure | 10–35 MPa (depending on size) |
| Locking Type | Ball Locking | Rated Flow | 6.3–400 L/min |
| Material | Chromium Plated Steel | Temperature Range | -20°C to +100°C (depending on seal material) |
Interchangeability
Cross-reference examples include:
- JB/ZQ4078-97-B
