Push-Lok Fittings

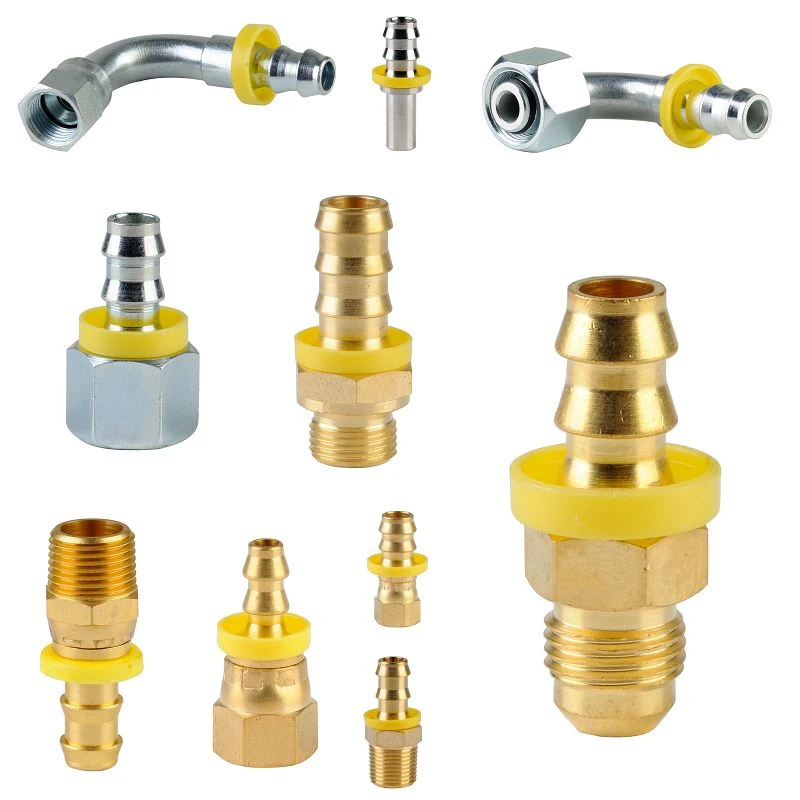

POOLKE Push-Lok fittings are designed for fast, reusable hose connections in pneumatic, low-pressure hydraulic and general fluid systems. The barbed stem profile allows Push-Lok hose to be installed directly onto the fitting without a conventional hose clamp, helping reduce assembly time and simplify hose replacement during maintenance.
The series is available in brass, stainless steel and steel, with a wide selection of NPT, BSP, SAE 45°, JIC 37° and Metric L connection styles. Straight rigid, swivel, 90° elbow, union and standpipe configurations provide flexibility for different hose routing requirements. Hose sizes cover 1/4" to 1", with working pressures up to 250 psi (1.7 MPa) for most sizes and 175 psi (1.2 MPa) for 1" hose. The Push-Lok fittings are especially suitable for industrial machinery, compressed-air circuits, lubrication lines and other applications where quick hose assembly and easy servicing are required.
Key Features
Clamp-Free Hose Connection
The barbed stem design allows compatible Push-Lok hose to be installed without traditional hose clamps, simplifying assembly.
Fast Installation and Replacement
Hoses can be assembled and serviced quickly, helping reduce downtime during equipment maintenance.
Multiple Material Options
Available in brass, stainless steel and steel to meet different strength, corrosion-resistance and application requirements.
Wide Range of Thread Standards
NPT, BSP, SAE 45°, JIC 37° and Metric L connections are available for broad international compatibility.
Multiple Connection Configurations
Rigid, swivel, 90° elbow, union and standpipe versions provide flexibility for different hose routing and installation layouts.
Broad Hose Size Coverage
Supports Push-Lok hose sizes from 1/4" through 1", covering a wide range of industrial applications.
Applications
The Push-Lok fittings are suitable for:
- Compressed-air systems
- Industrial machinery
- Low-pressure hydraulic circuits
- Lubrication systems
- Workshop equipment
- General fluid transfer lines
Technical Overview
| Product Type | Push-Lok Fittings | Working Pressure |
Up to 250 psi / 1.7 MPa for 1/4"–3/4" Up to 175 psi / 1.2 MPa for 1" |
| Materials | Brass / Stainless Steel / Steel | Connection Standards | NPT / BSP / SAE 45° / JIC 37° / Metric L |
| Hose Sizes | 1/4" / 3/8" / 1/2" / 5/8" / 3/4" / 1" | Available Styles | Rigid / Swivel / 90° Elbow / Union / Standpipe |

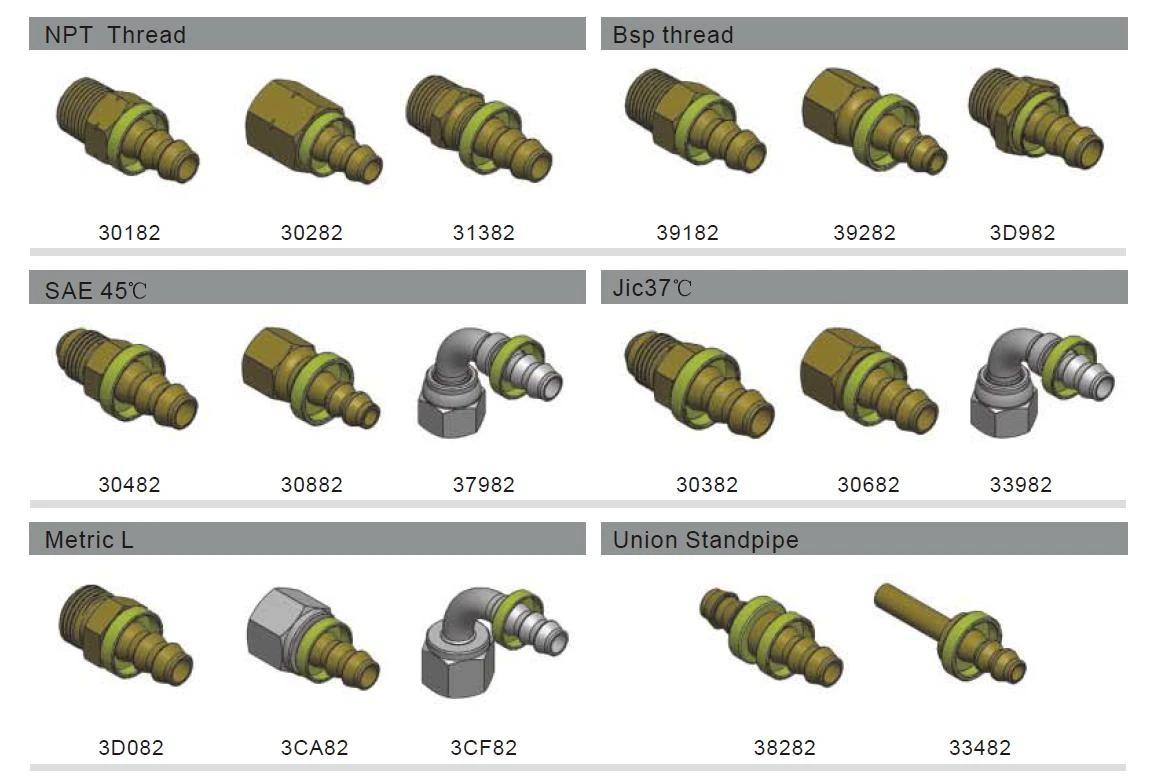

Product Range
- 30182 – Male NPT Pipe Rigid
- 30282 – Female NPT Pipe Rigid
- 31382 – Male NPT Pipe Swivel
- 39182 – BSP Taper Male
- 3D982 – Male BSP Parallel Pipe Rigid
- 30482 – Male SAE 45° Rigid
- 30882 – Female SAE 45° Swivel
- 37982 – Female SAE 45° Swivel 90° Elbow
- 30382 – Male JIC 37° Rigid
- 30682 – Female JIC 37° Swivel
- 33982 – Female JIC 37° Swivel 90° Elbow
- 3D082 / 3CA82 / 3CF82 – Metric L Types
- 38282 – Push-Lok Union
- 33482 – Male Standpipe Rigid
