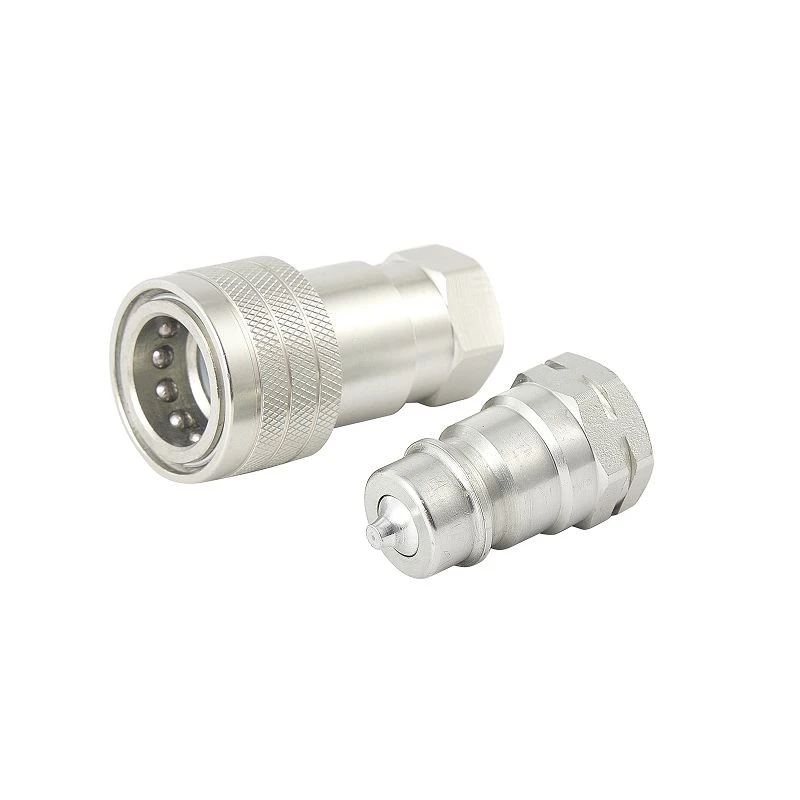

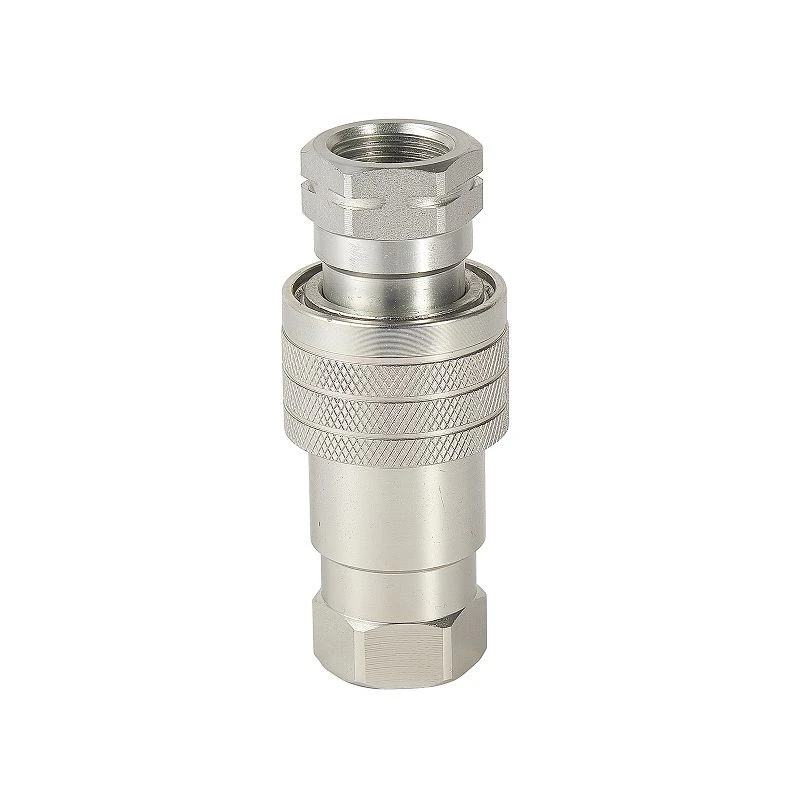

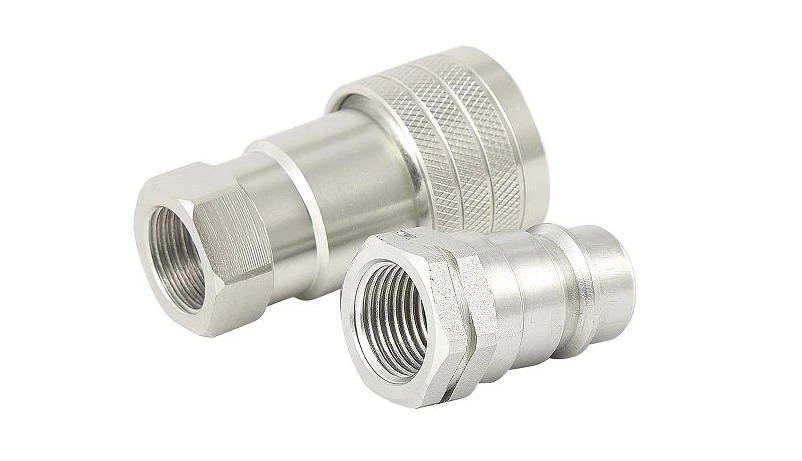

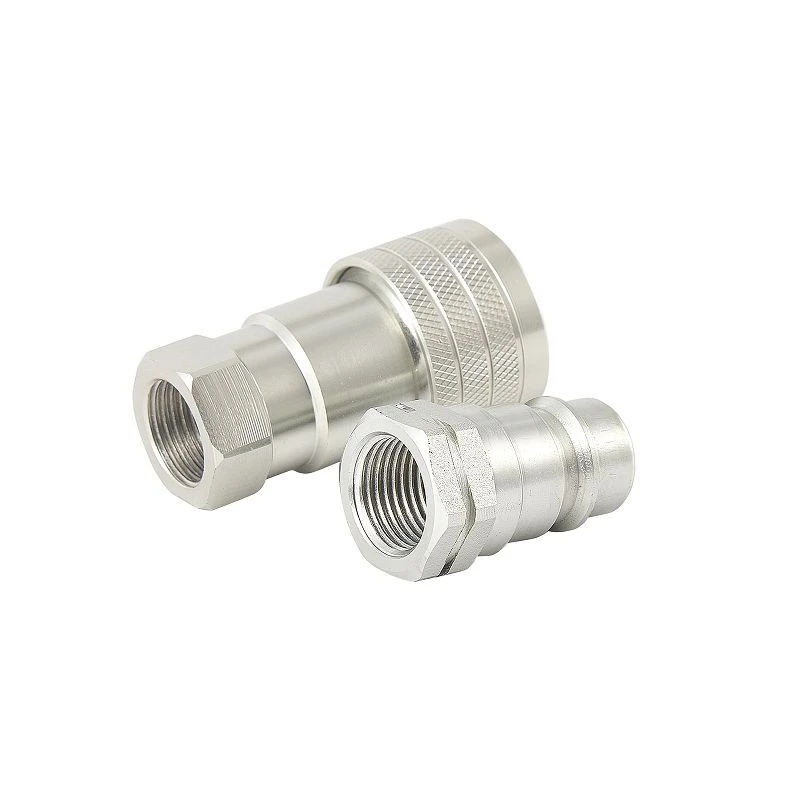

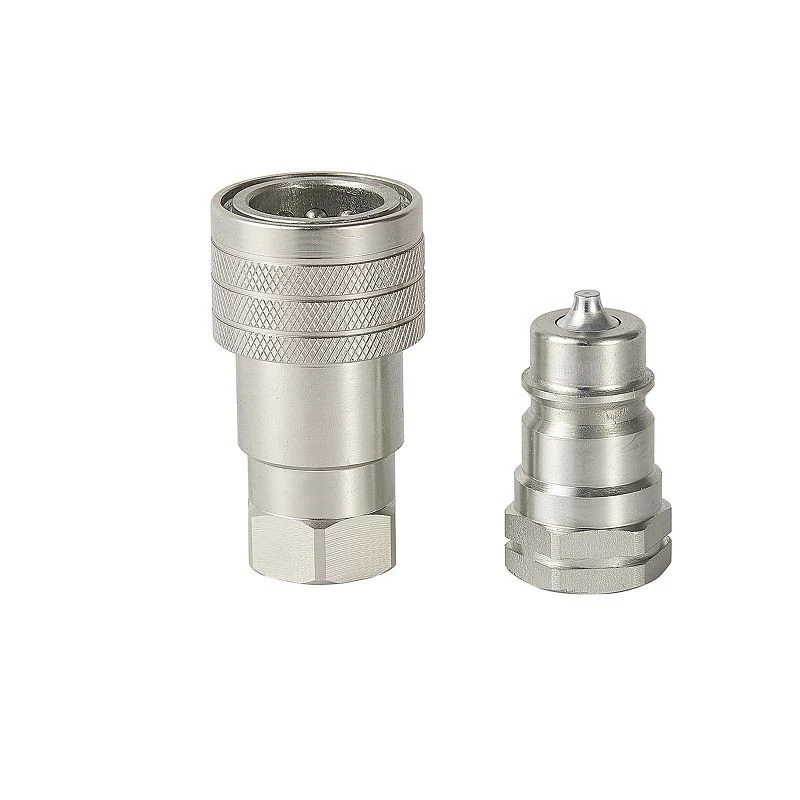

ISO 7241-A Hydraulic Quick Couplers
The ISO 7241-A Hydraulic Quick Couplers is designed for reliable connection and disconnection in hydraulic systems. Manufactured to meet ISO 7241-1 Series A, it provides standardized interchangeability, secure ball locking and dependable poppet valve sealing.
Available in zinc-plated steel, brass and stainless steel, this ISO 7241-A Hydraulic Quick Couplers is suitable for agricultural machinery, mobile equipment and general hydraulic applications.
Key Features
ISO 7241-A Standard
Designed to meet ISO 7241-1 Series A for reliable interchange with compatible ISO-A couplings.
01
Durable Ball-Locking Mechanism
The ball-locking system provides secure engagement and dependable connection during operation.
02
Hardened Wear Components
The sleeve and nipple are hardened to improve resistance to brinelling, mechanical shock and repeated coupling cycles.
03
Reinforced Sealing Design
An additional PTFE backup ring supports the O-ring and helps improve sealing performance under higher hydraulic pressure.
04
Protected Poppet Valve Seal
The valve seal is retained by the metal poppet to help reduce seal washout and damage caused by high-velocity fluid.
05
Applications
The ISO 7241-A Hydraulic Quick Coupling is suitable for:
- Agricultural machinery
- Tractors and farm equipment
- Construction machinery
- Mobile hydraulic equipment
- General hydraulic systems

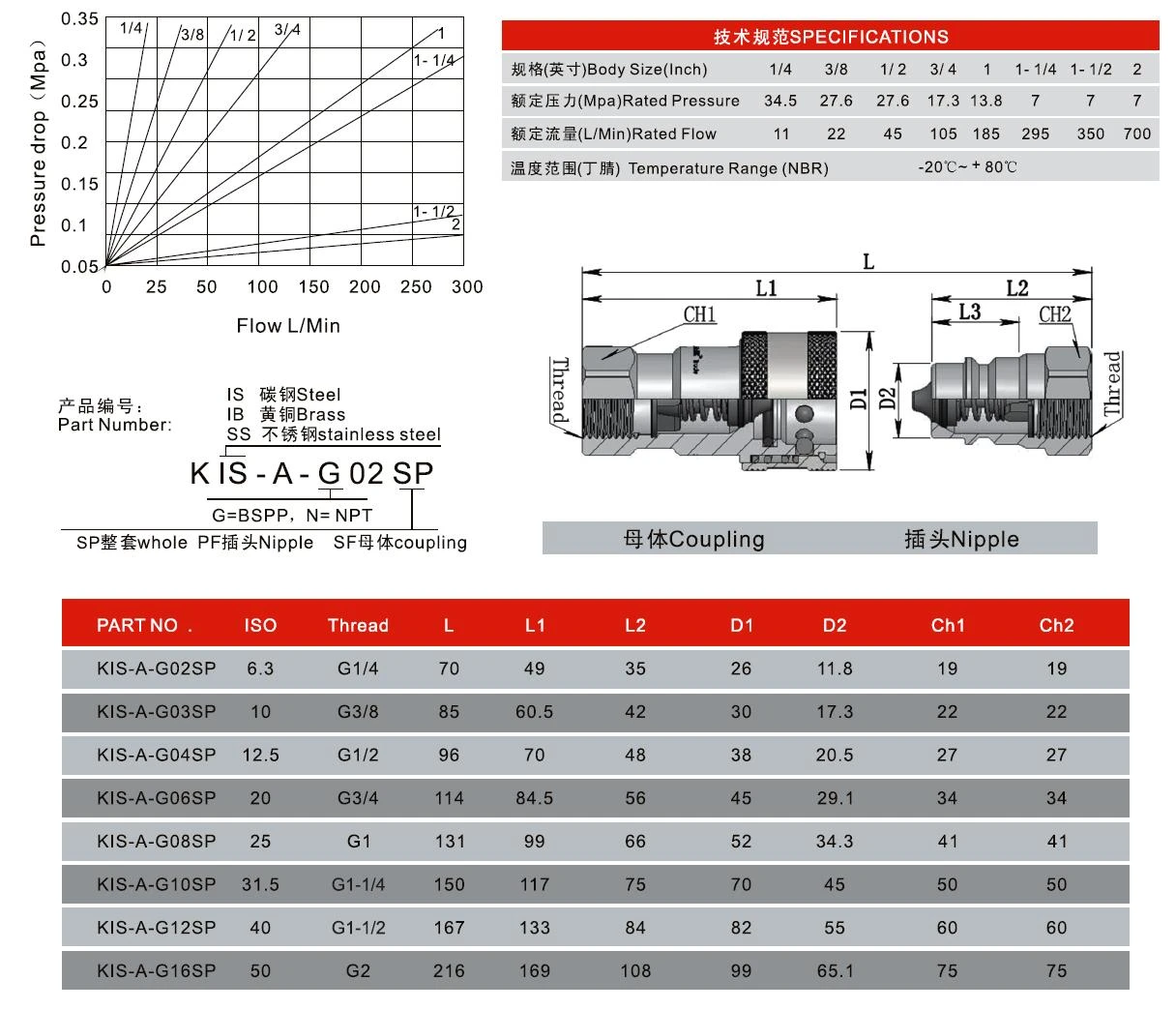

Technical Overview
| Standard | ISO 7241-1 Series A | Thread Options | BSPP / NPT |
| Valve Type | Poppet Valve | Size Range | 1/4" – 2" |
| Locking Type | Ball Locking | Accessories | Dust Caps Available |
| Materials | Steel / Brass / Stainless Steel |
Interchangeability
Cross-reference examples include:
Parker 6600 Series, Faster ANV, Nitto 280
Hansen HA15000, Foster ANV Series, CEJN X95
