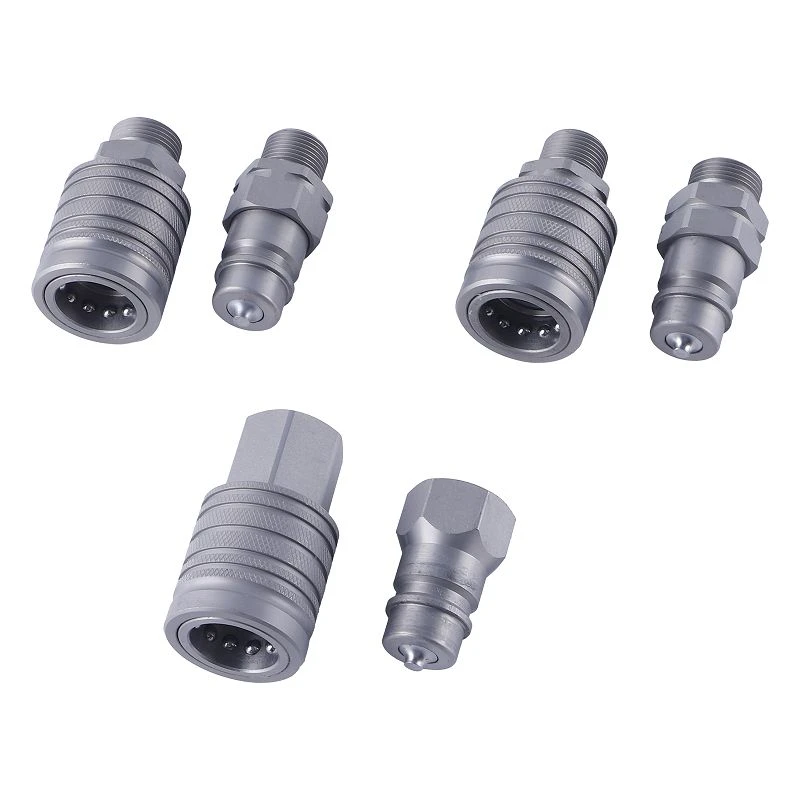

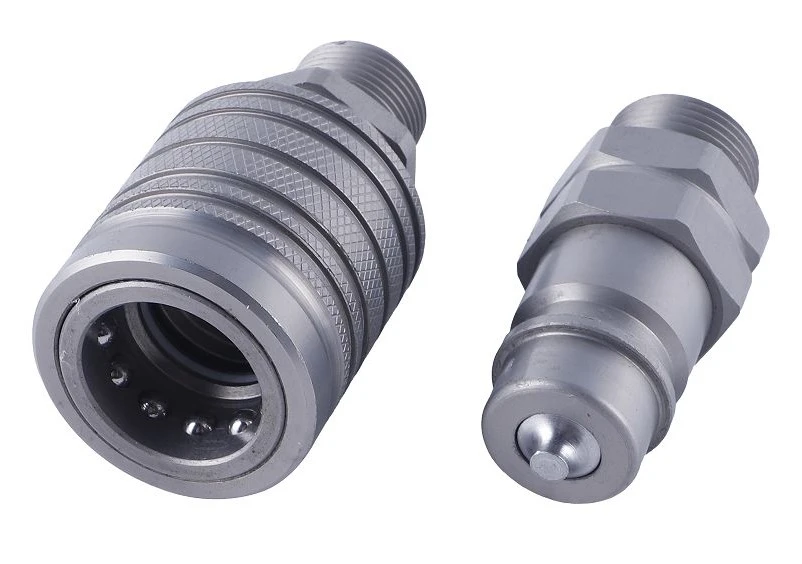

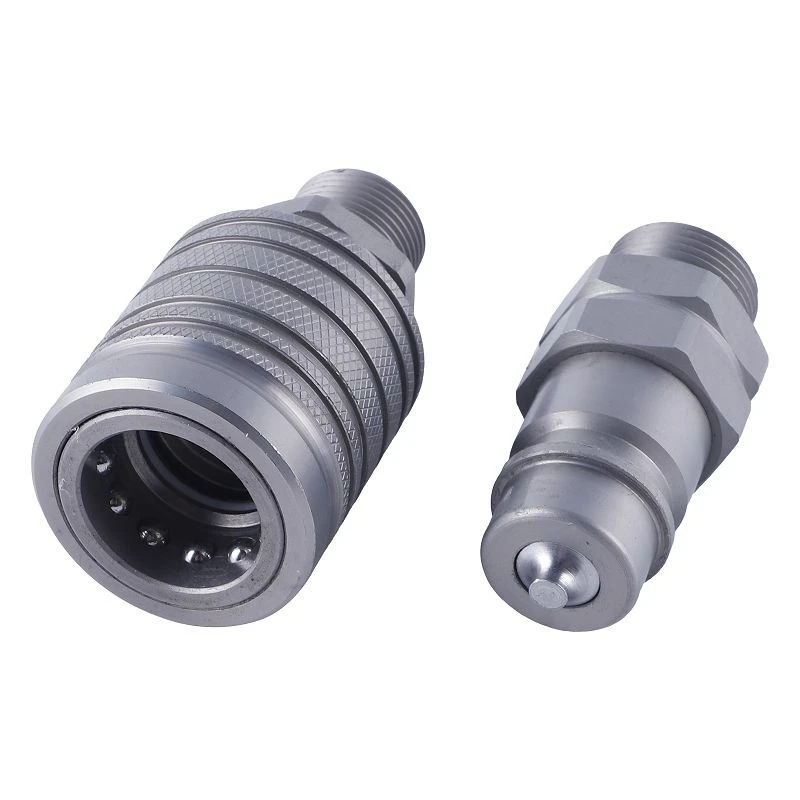

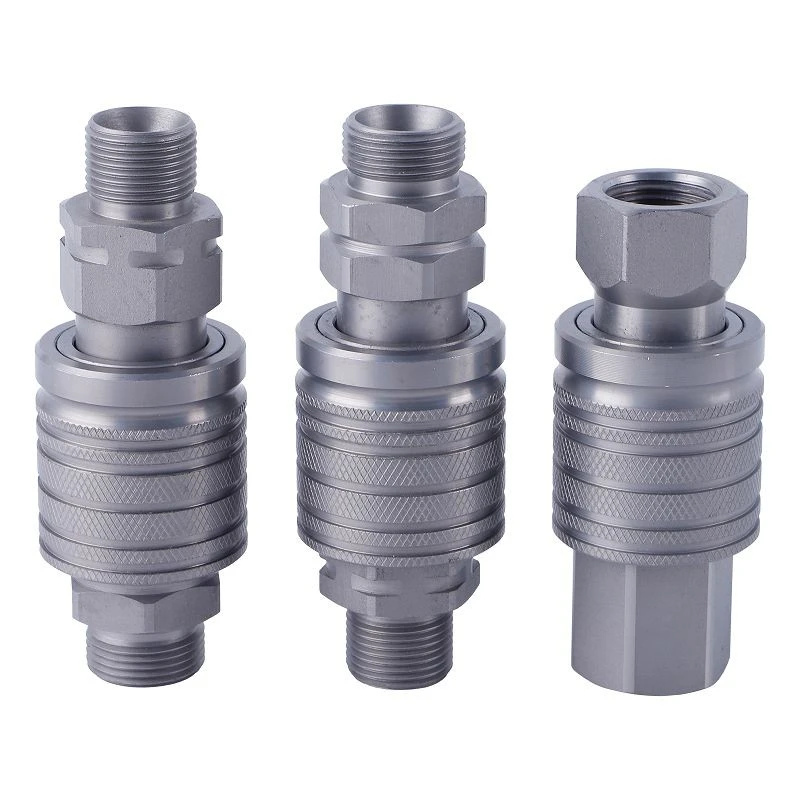

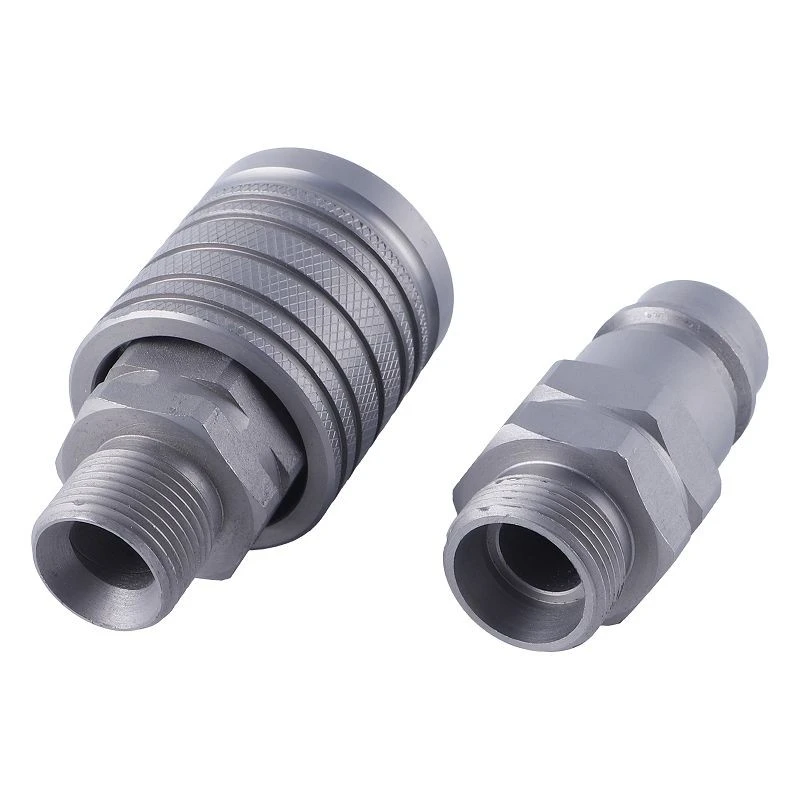

KIS-PP ISO 7241-A Push-Pull Hydraulic Quick Couplings
The KIS-PP ISO 7241-A Push-Pull Hydraulic Quick Coupling is designed for fast and convenient connection of hydraulic lines where frequent coupling and disconnection are required. Manufactured according to ISO 7241-1 Series A, it features a double-acting sleeve design that allows push-to-connect or pull-to-disconnect operation.
With a compact structure, reliable locking mechanism and hardened components, the KIS-PP Push-Pull Hydraulic Quick Coupling provides efficient and dependable performance for mobile and industrial hydraulic applications.
Key Features
ISO 7241-A Standard
Designed to meet ISO 7241-1 Series A requirements and provide interchangeability with compatible ISO-A couplings.
01
Push-Pull Operation
The double-acting sleeve allows quick connection by pushing and easy disconnection by pulling, improving operation efficiency.
02
Easy One-Hand Connection
The push-pull design enables convenient operation in applications where frequent connection and disconnection are required.
03
Durable Construction
The coupling and nipple are precision machined from solid bar stock, while critical parts are induction hardened for improved durability.
04
Reliable Hydraulic Performance
The hardened components help improve resistance to wear, mechanical shock and repeated coupling cycles.
05
Applications
The KIS-PP ISO 7241-A Push-Pull Hydraulic Quick Coupling is suitable for:
- Construction machinery
- Agricultural machinery
- Mobile hydraulic equipment
- Hydraulic attachments
- Industrial hydraulic systems

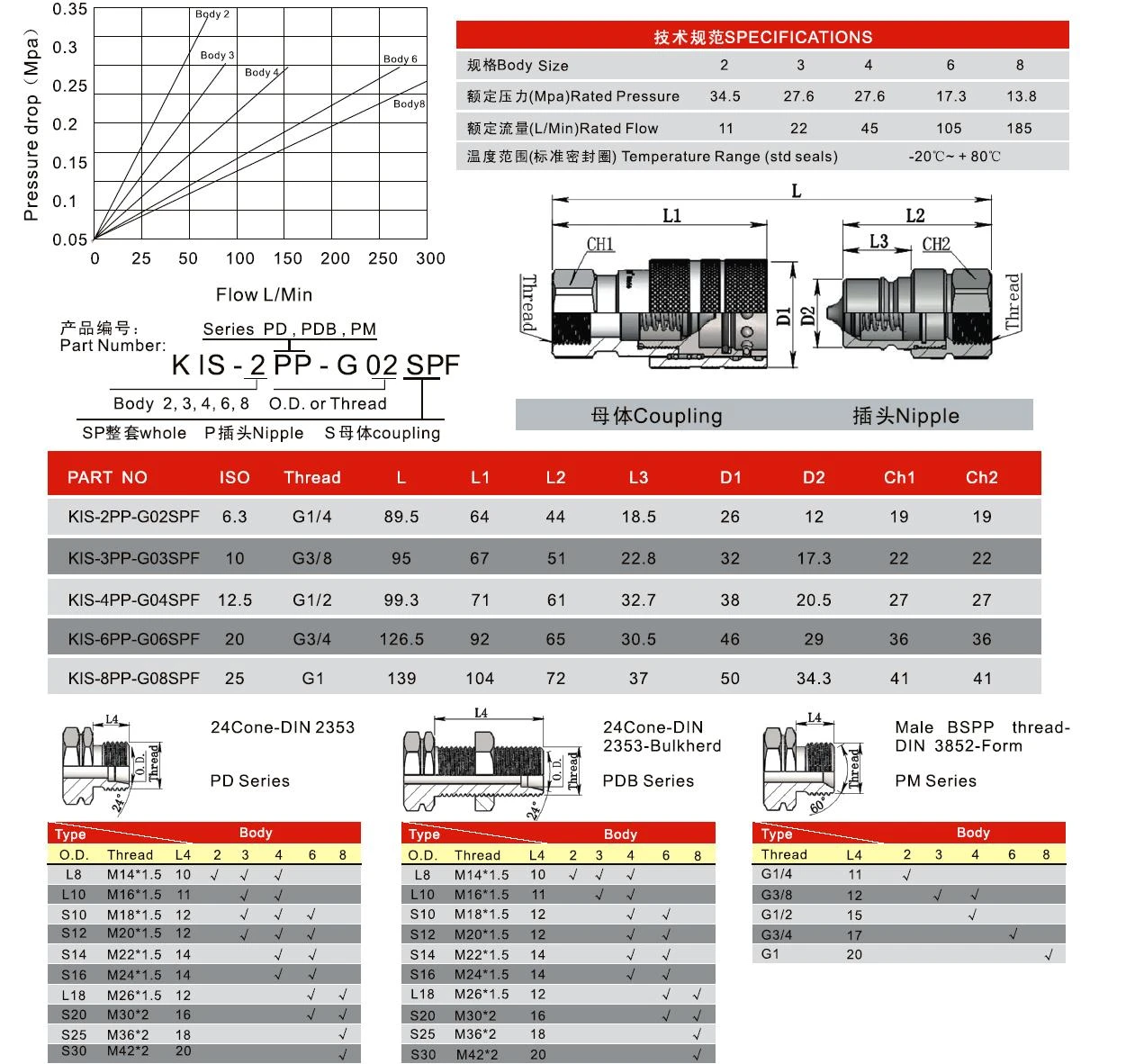

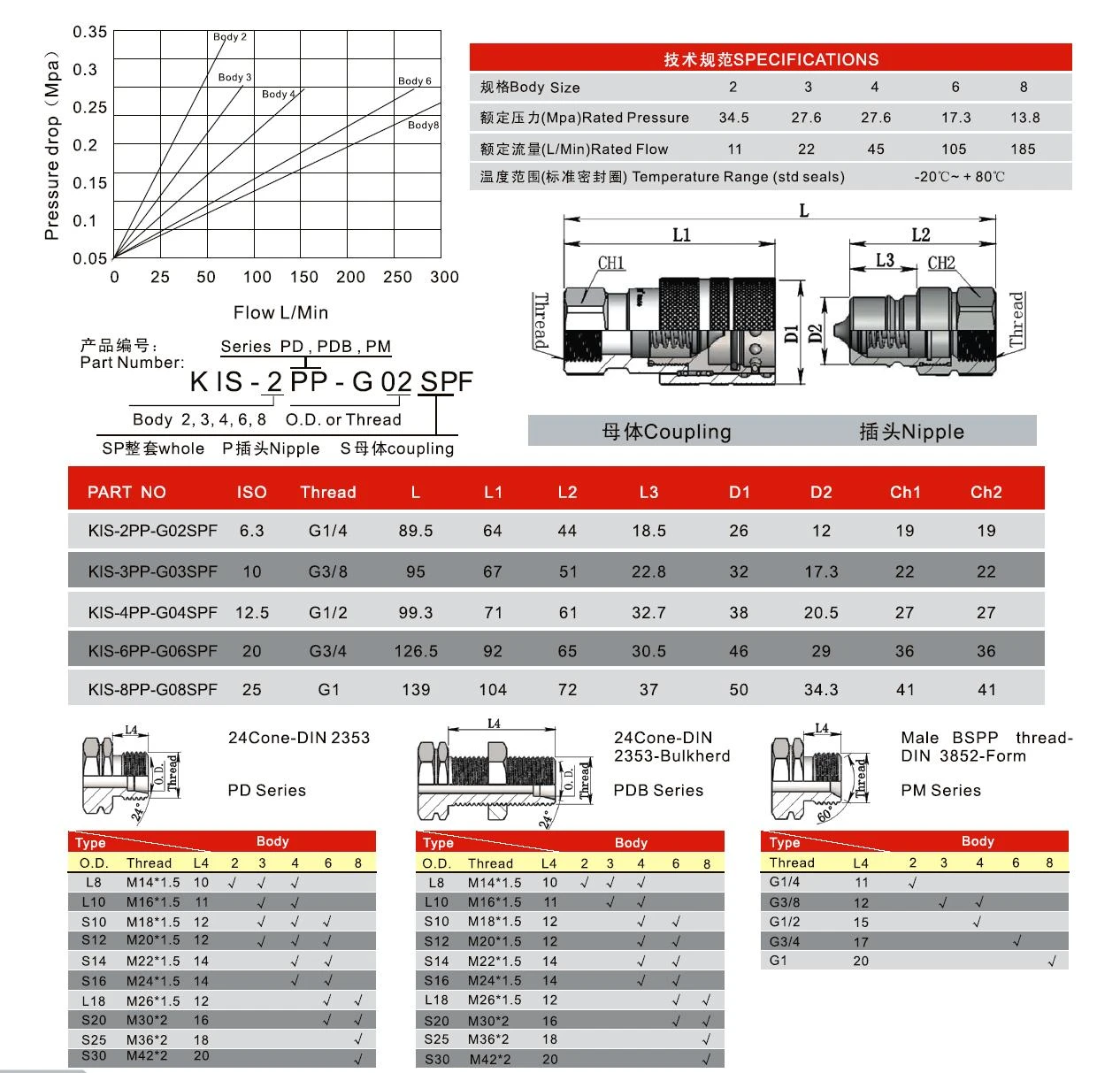

Technical Overview
| Standard | ISO 7241-1 Series A | Nipple | Hardened Zinc Chromate Plated Steel |
| Valve Type | Poppet Valve | Thread Options | BSPP / NPT |
| Locking Type | Push-Pull Sleeve | Size Range | 1/4" – 1" |
| Connection Type | Push-to-Connect / Pull-to-Disconnect | Temperature Range | -20°C to +100°C |
| Material | Zinc Chromate Plated Steel |
Interchangeability
Cross-reference examples include:
- Parker 2000 Series Type
- Faster CPV-CNV Series Type
- Hydac HP Series Type
