Cixi Poolke Hydraulic Pneumatic Co., Ltd. is one of the leading manufacturers and suppliers of 310 pneumatic quick couplings in China. We are committed to providing high quality customized service to global clients. Please feel free to wholesale the newest 310 pneumatic quick couplings from our factory.

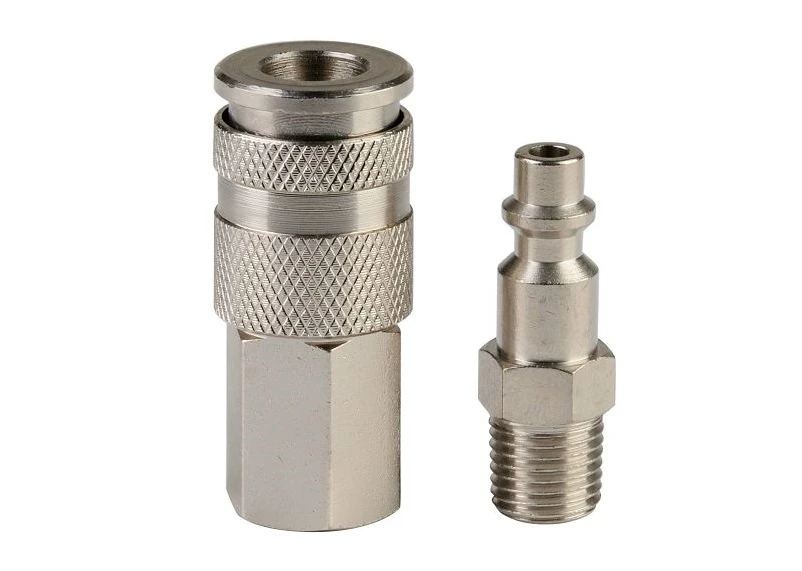

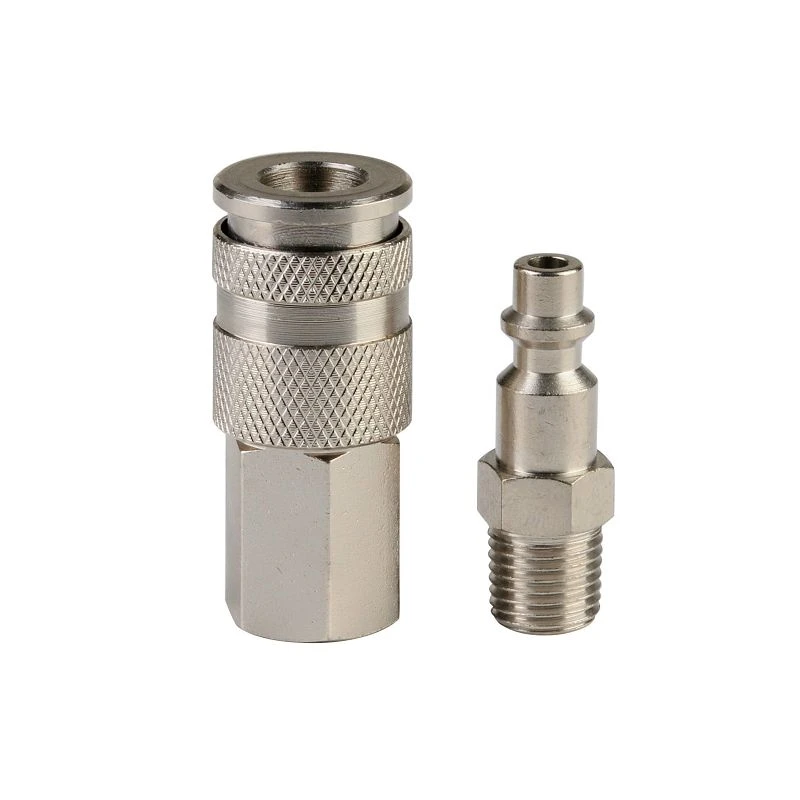

ISO B6 Standard Pneumatic Quick Couplings – 310 Series
The 310 Pneumatic quick couplings from the POOLKE 310 Series are designed for efficient compressed-air connections in industrial equipment, pneumatic tools and automated production systems. With a nominal flow diameter of 5.5 mm and flow capacity up to 925 L/min, the series provides high airflow performance while helping reduce pressure loss in demanding pneumatic applications.
The 310 Series features one-hand operation and low connection force for fast, convenient coupling during daily use. Nickel-plated socket construction, a hardened zinc-plated steel plug and a durable locking mechanism provide reliable performance under frequent connection cycles. The 310 Pneumatic quick couplings also offer multiple threaded, hose barb and hose connection configurations, making them suitable for a wide range of compressed-air installations.
Key Features
High Flow Capacity
Provides airflow up to 925 L/min with a 5.5 mm nominal flow diameter for efficient compressed-air delivery.
One-Hand Operation
Designed for quick connection and disconnection, helping improve productivity in frequently operated air lines.
Low Connection Force
The optimized coupling mechanism makes connection easier while maintaining secure locking performance.
Durable Metal Construction
Nickel-plated socket materials and hardened zinc-plated steel plugs provide good wear resistance and service life.

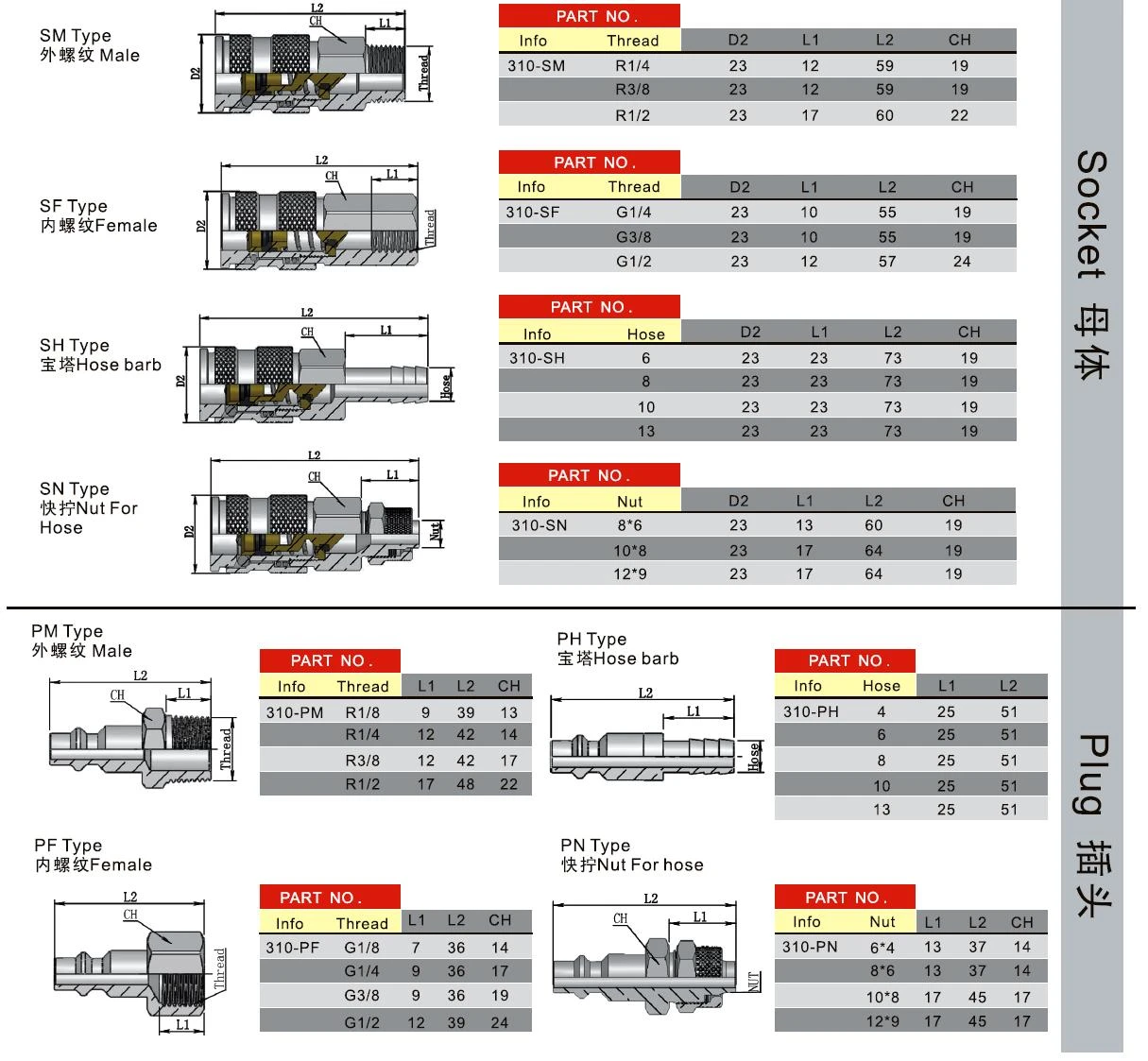

Wide Connection Options
Available with male threads, female threads, hose barbs and hose nut configurations for flexible installation.
Broad Industrial Compatibility
Designed around the ISO B6 / ISO 6150-B profile for use with many established industrial pneumatic coupling systems.
Applications
The 310 Pneumatic quick couplings are suitable for:
- Pneumatic tools
- Air compressors
- Factory automation
- Assembly lines
- Industrial air systems
- Machinery and workshop equipment

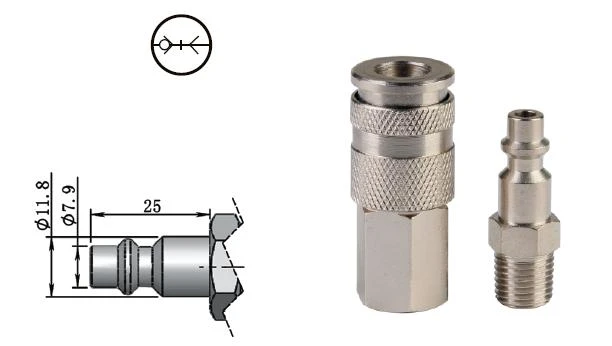

Technical Overview
| Series | 310 | Socket Material | Nickel-Plated Brass / Steel |
| Type | ISO B6 Standard Pneumatic Quick Couplings | Plug Material | Hardened Zinc-Plated Steel |
| Nominal Flow Diameter | 5.5 mm | Operation | One-Hand Operated |
| Flow Capacity | 925 L/min | Temperature Range | -20°C to +100°C |
| Max. Working Pressure | 35 Bar |
Interchangeability
Cross-reference examples include:
- ISO 6150-B 1/4 Profile
- MIL-C-4109 1/4 Profile
- Legris 23 / 24 Series Type
- Rectus 23KA / 24KA Series Type
- Parker 20-1/4 / 30-1/4 Series Type
- Tema 1400 Series Type
- Hansen 3000 Series Type
- CEJN 310 Series Type
