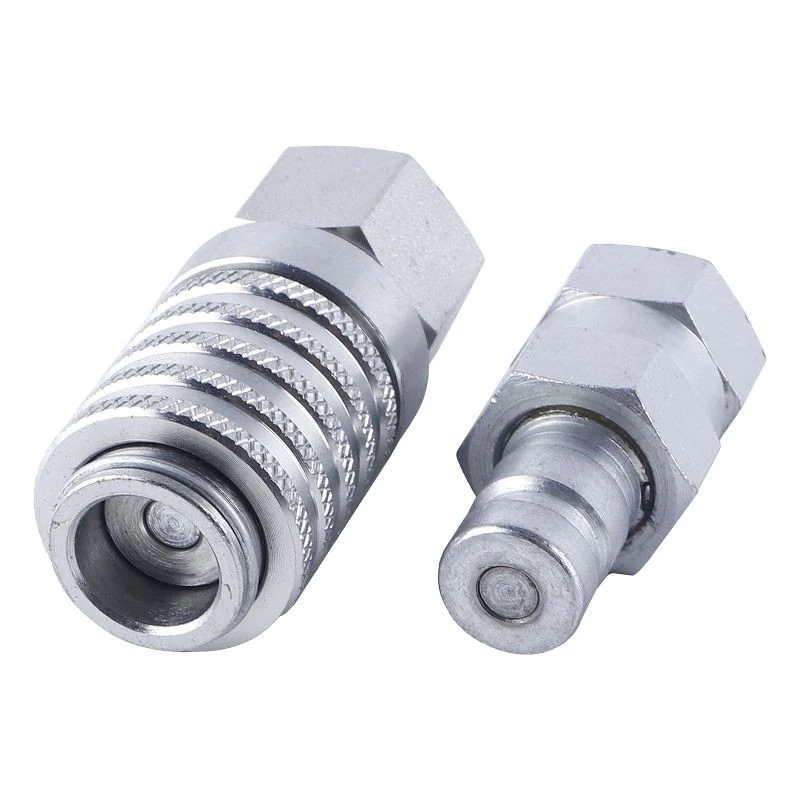

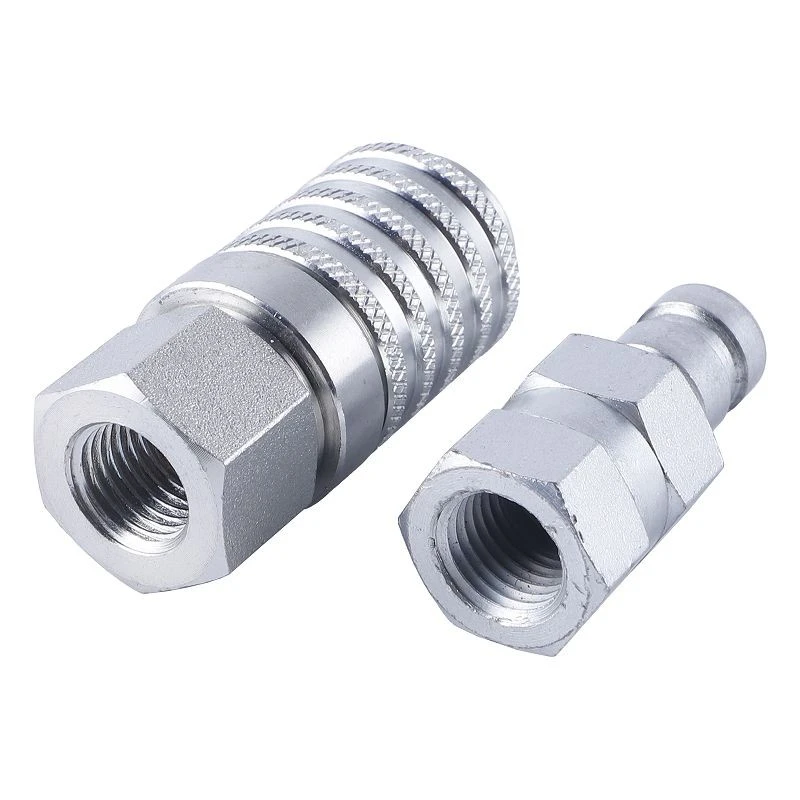

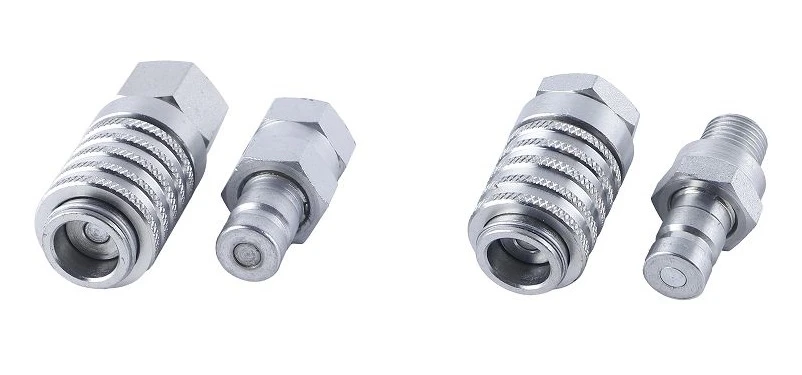

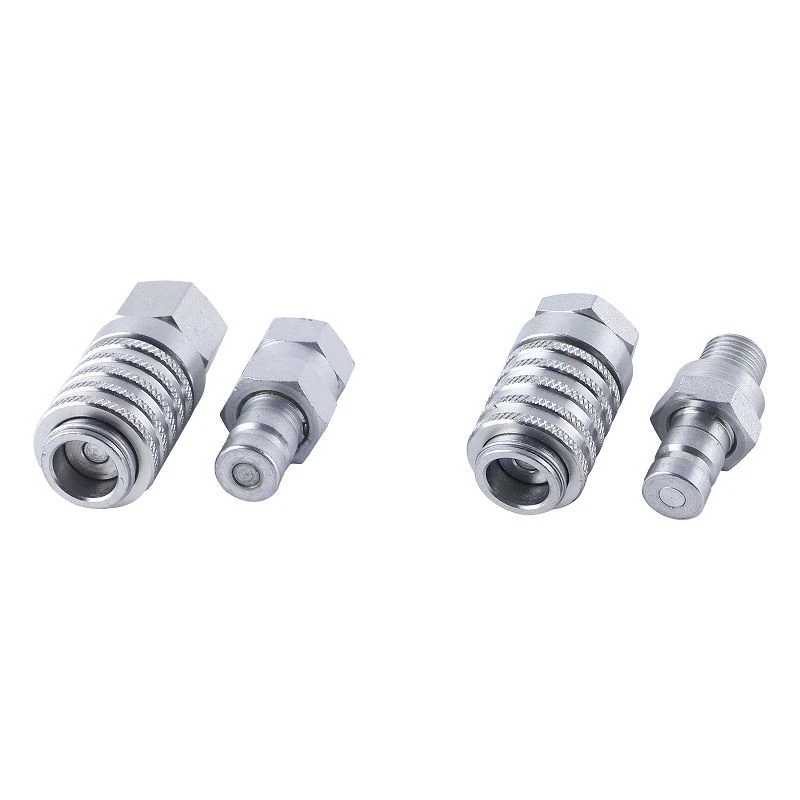

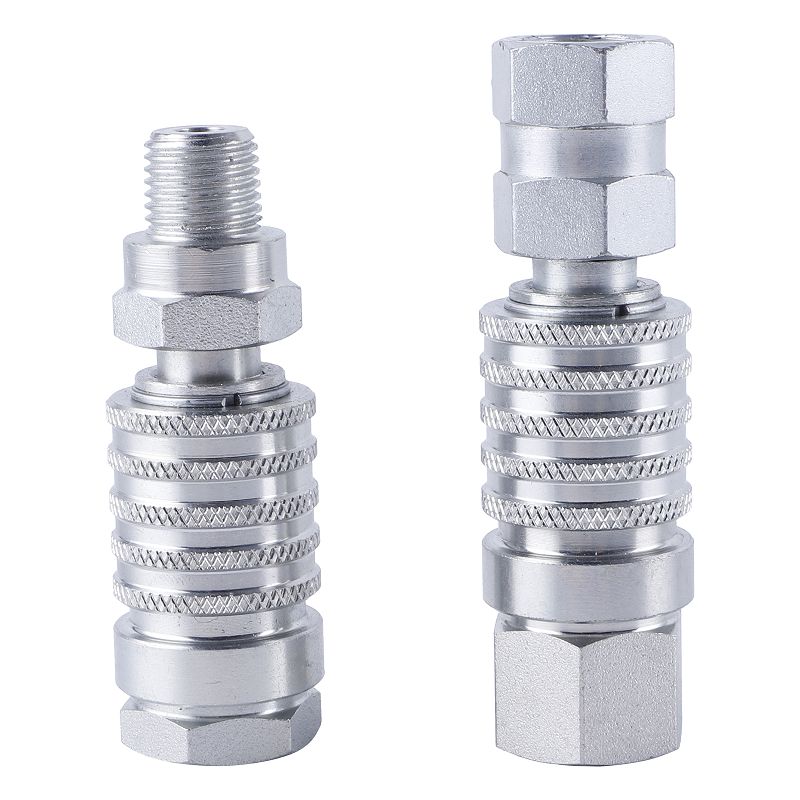

PD Diagnostic flat face hydraulic quick connect
The PD Diagnostic flat face hydraulic quick connect is designed for fast and reliable pressure testing and monitoring of hydraulic and pneumatic systems. It provides convenient test points for measuring system pressure, helping improve equipment maintenance efficiency and troubleshooting accuracy.
Designed according to SAE J1502 and ISO 15171-1, the PD Diagnostic flat face hydraulic quick connect features a compact structure, push-to-connect operation and a safety sleeve lock to prevent accidental disconnection.
Key Features
SAE J1502 & ISO 15171-1 Standard
Designed to meet SAE J1502 and ISO 15171-1 requirements for hydraulic diagnostic couplings.
Easy Pressure Testing
Provides accessible test points for quick pressure measurement and system performance monitoring.
Push-to-Connect Design
The push-to-connect structure enables fast connection and convenient operation during maintenance and testing.
Safety Sleeve Lock
The safety locking sleeve helps prevent accidental disconnection during operation.
Flat Face Valve Design
The flush-faced poppet minimizes air inclusion during connection, reduces fluid loss during disconnection and allows easy cleaning.
Multiple Seal Options
Standard NBR seals are available, with FKM (Viton™) and EPDM seal options available upon request.
Applications
The PD Diagnostic flat face hydraulic quick connect is suitable for:
- Hydraulic system testing
- Pressure monitoring equipment
- Construction machinery maintenance
- Industrial hydraulic equipment
- Hydraulic and pneumatic troubleshooting systems

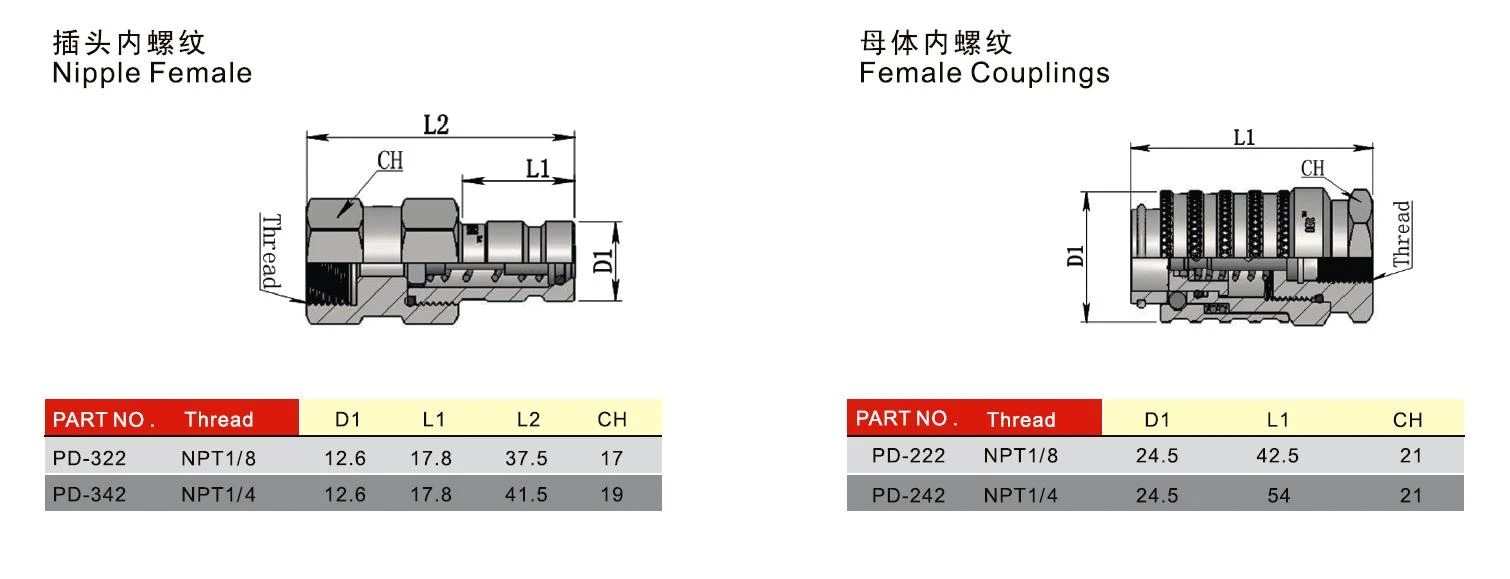

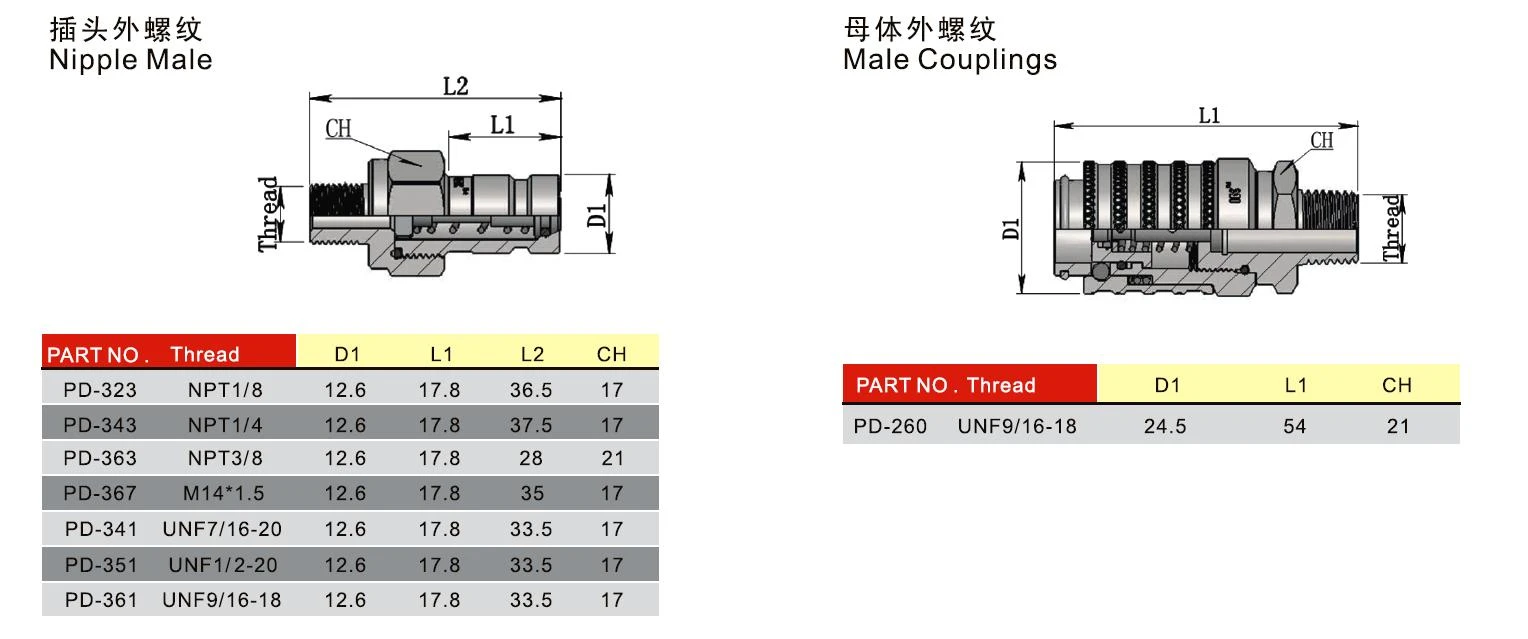

Technical Overview
| Standard | SAE J1502 / ISO 15171-1 | Standard Seal | NBR |
| Valve Type | Flush-Faced Poppet Valve | Optional Seals | FKM (Viton™) / EPDM |
| Connection Type | Push-to-Connect | Rated Pressure | 42 MPa |
| Locking Type | Safety Sleeve Lock | Rated Flow | 5 L/min |
| Material | Zinc Chromate Plated Steel | Temperature Range | -20°C to +100°C |
| Nipple | Hardened Zinc Chromate Plated Steel |
Interchangeability
Cross-reference example:
- Parker PD Series Type
