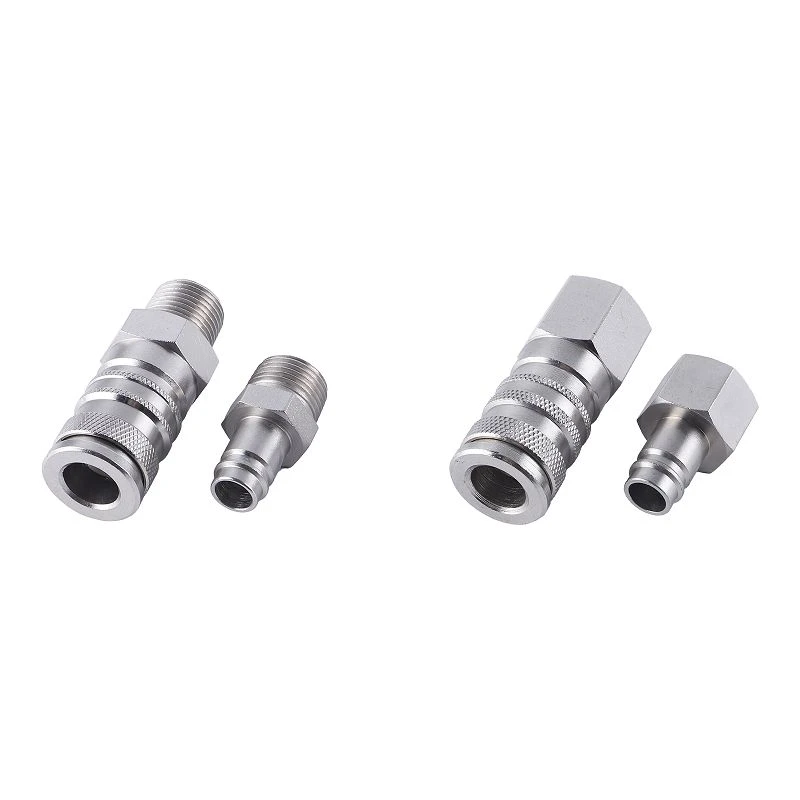

EURO 10.5 Standard Pneumatic Quick Couplings – 410 Series
The 410 Pneumatic quick couplings from the POOLKE 410 Series are designed for compressed-air systems that require very high airflow, fast operation and dependable service in demanding industrial environments. With a 10.5 mm nominal flow diameter and flow capacity up to 3900 L/min, the series is particularly suitable for pneumatic machinery and tools with large air consumption.
The 410 Series adopts a high-flow poppet design to reduce internal restriction and support efficient air delivery throughout the system. One-hand operation allows quick connection and disconnection during tool changes, while nickel-plated brass/steel sockets and hardened zinc-plated steel plugs provide good durability for repeated industrial use. With multiple male thread, female thread and hose connection options, the 410 Pneumatic quick couplings provide a practical solution for large compressed-air networks where high flow, low pressure loss and reliable connection performance are essential.
Key Features
Ultra-High Flow Capacity
Provides airflow up to 3900 L/min through a 10.5 mm nominal flow diameter, making it suitable for high-demand pneumatic equipment.
High Flow Poppet Design
The optimized valve structure helps reduce airflow restriction and supports efficient compressed-air delivery with lower pressure loss.
One-Hand Operation
The quick-connect mechanism allows convenient one-hand connection and disconnection for faster tool changes and maintenance.
Durable Industrial Construction
Nickel-plated brass/steel sockets and hardened zinc-plated steel plugs provide reliable wear resistance under repeated use.
Secure Connection Performance
The robust locking mechanism helps maintain stable coupling engagement during continuous pneumatic operation.
Flexible Connection Options
Available with male threads, female threads and hose connections for integration into a wide range of industrial air systems.
Applications
The 410 Pneumatic quick couplings are suitable for:
- High-flow compressed-air systems
- Heavy-duty pneumatic tools
- Industrial air compressors
- Manufacturing machinery
- Factory automation
- Large pneumatic equipment
Technical Overview
| Series | 410 | Socket Material | Nickel-Plated Brass / Steel |
| Type | EURO 10.5 Standard Pneumatic Quick Couplings | Plug Material | Hardened Zinc-Plated Steel |
| Nominal Flow Diameter | 10.5 mm | Operation | One-Hand Operated |
| Flow Capacity | 3900 L/min | Valve Design | High Flow Poppet |
| Max. Working Pressure | 35 Bar | Temperature Range | -20°C to +100°C |
Interchangeability
Cross-reference examples include:
- Rectus 27KA Series Type
- Legris 27 Series Type
- Parker RF-3/8 / PEF53 Series Type
- Tema 1700 Series Type
- CEJN 410 Series Type
