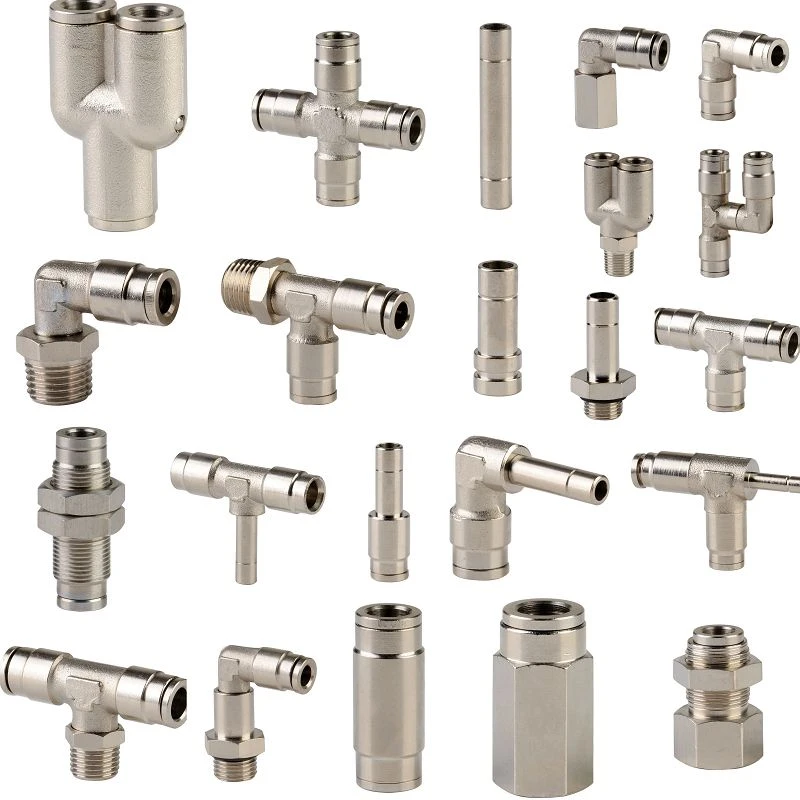

SS316 Push-In Fittings – SP Series
The SS316 Push-In fittings from the POOLKE SP Series are designed for pneumatic and fluid systems that require higher corrosion resistance, reliable tube retention and convenient installation. Manufactured in SUS316 stainless steel, this series is particularly suitable for demanding industrial environments where standard brass fittings may not provide sufficient resistance to moisture, chemicals or corrosive media.
The push-in connection structure allows tubing to be installed quickly without special assembly tools. Tubes can also be removed by operating the release mechanism, making maintenance and piping modifications more efficient. A full-flow internal passage helps maintain smooth media transfer, while the compact fitting design supports installation in space-limited machinery and process equipment. Available for metric and inch tubing together with several international thread standards, the SS316 Push-In fittings provide a versatile connection solution for pneumatic automation, process systems and industrial fluid lines requiring durable stainless steel components. The catalog identifies SP as the SUS316 version within the push-in fitting range.
Key Features
SUS316 Stainless Steel Construction
Manufactured from SUS316 stainless steel to provide excellent corrosion resistance for demanding pneumatic and fluid applications.

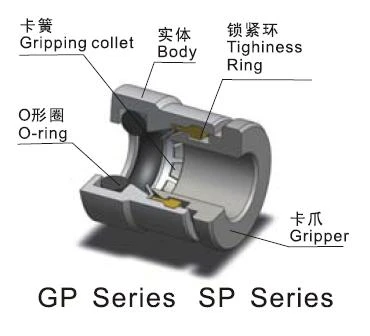

Fast Push-In Tube Connection
Tubing can be inserted directly into the fitting without special tools, helping shorten installation and assembly time.
Easy Tube Removal
The release mechanism allows convenient tube disconnection for system maintenance, replacement or piping adjustment.
Full-Flow Internal Design
The internal passage is designed to minimize unnecessary flow restriction and maintain efficient compressed-air or fluid transfer.
Wide Tube Size Selection
Available for metric tube sizes from 4 to 14 mm, together with common inch tube sizes for different piping requirements.
International Thread Compatibility
Multiple BSPP, BSPT and NPT thread options allow the fittings to be integrated into different international pneumatic and process systems.
Applications
The SS316 Push-In fittings are suitable for:
- Industrial automation
- Pneumatic control systems
- Process equipment
- Chemical handling equipment
- Food and packaging machinery
- Corrosive industrial environments
Technical Overview
| Series | SP | Inch Tube Sizes | 1/8" / 1/4" / 3/8" / 1/2" |
| Type | SS316 Push-In Fittings | Working Pressure | Up to 15 Bar |
| Material | SUS316 Stainless Steel | Thread Options | BSPP / BSPT / NPT |
| Applicable Media | Compressed Air / Fluid | Temperature Range | -20°C to +80°C; higher-temperature configurations are indicated in the catalog depending on sealing/material selection |
| Tube O.D. | 4 / 5 / 6 / 8 / 10 / 12 / 14 mm |
Interchangeability
Standards & Compatibility
- G Thread: BSPP
- R Thread: BSPT
- N Thread: NPT
