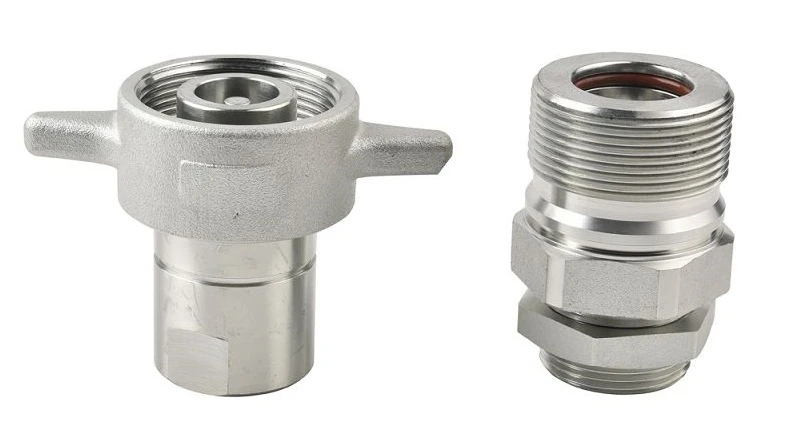

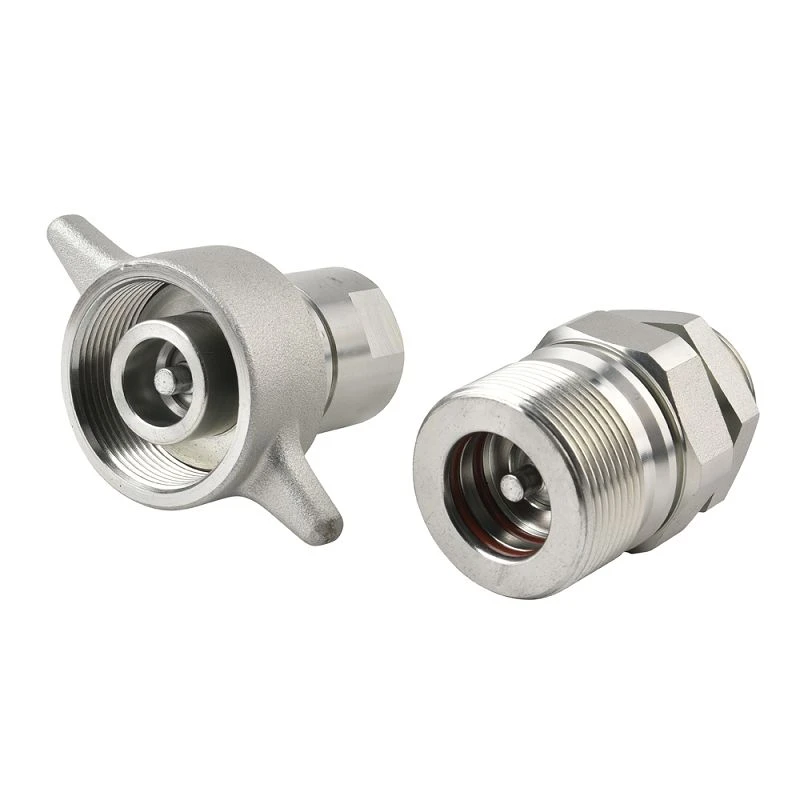

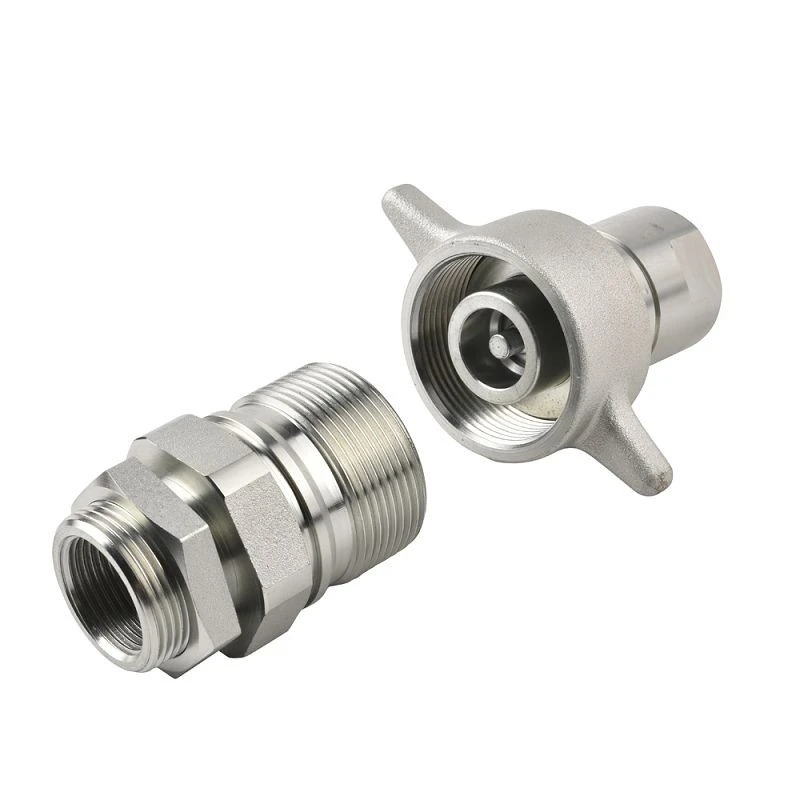

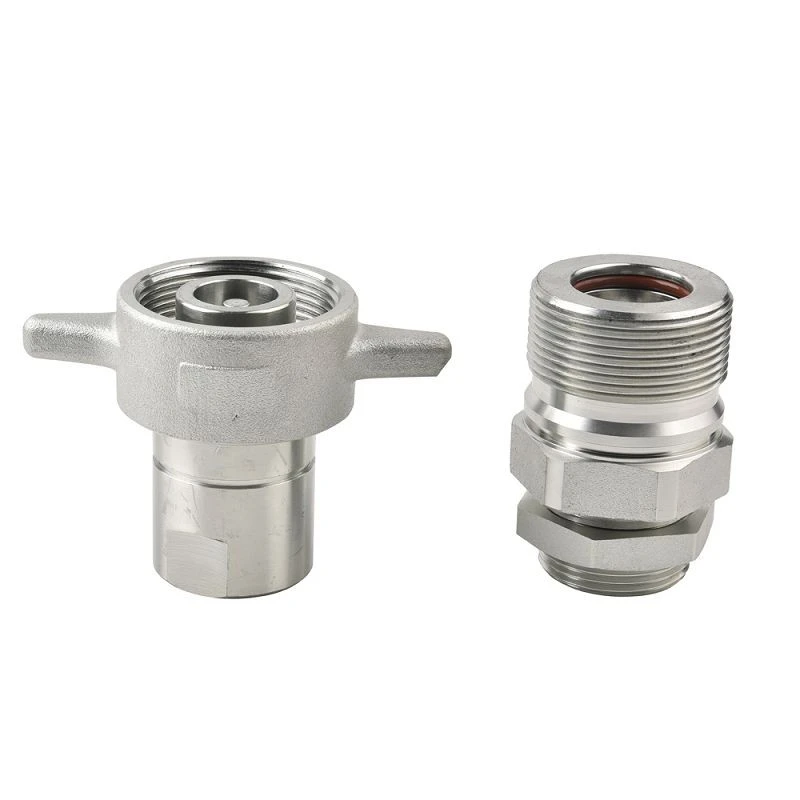

KIS VC Screw to Connect Hydraulic Quick Couplings
The KIS VC Screw to Connect Hydraulic Quick Couplings from the POOLKE KIS-VC Series is designed for high-pressure hydraulic systems requiring secure connection, excellent sealing performance and long service life. Featuring a threaded nipple locking mechanism, this series provides a strong and stable connection between coupling and nipple, making it suitable for applications where vibration resistance and pressure reliability are important.
The KIS-VC Series adopts a heavy-duty design with precision-machined steel components to ensure durability under demanding working conditions. With modular construction and various end connection options, the KIS VC Screw to Connect Hydraulic Quick Couplings offers a flexible solution for industrial machinery, hydraulic equipment and high-pressure applications requiring safe and dependable hydraulic connections.
Key Features
Threaded Nipple Locking Mechanism
The threaded locking structure securely connects the coupling and nipple, providing excellent resistance against vibration and accidental disconnection.
High Pressure Hydraulic Performance
Designed for high-pressure hydraulic applications, the screw locking structure ensures stable connection performance under demanding operating conditions.
Heavy-Duty Construction
Manufactured from nickel-plated steel with precision-machined components, providing high mechanical strength, wear resistance and extended service life.
Reliable Sealing Performance
The optimized sealing structure helps maintain hydraulic system integrity and reduces the risk of leakage during operation.
PTFE Backup Ring Support
An optional PTFE backup ring is available to improve sealing stability and prevent seal extrusion in high-pressure environments.
Modular Connection Options
The modular design supports various end configurations, allowing flexible installation for different hydraulic equipment requirements.
Applications
The KIS VC Screw to Connect Hydraulic Quick Couplings is suitable for:
- High pressure hydraulic systems
- Construction machinery
- Industrial hydraulic equipment
- Hydraulic power units
- Heavy-duty machinery
- Mobile hydraulic applications
Technical Overview
| Series | KIS-VC | Seal Material | NBR |
| Type | Screw Type Hydraulic Quick Coupling | Connection Type | Threaded Connection |
| Locking Type | Threaded Nipple Locking | Working Pressure | Up to 5 MPa |
| Material | Nickel Plated Steel | Temperature Range | -20°C to +100°C (depending on seal material) |
| Nipple Material | Hardened Nickel Plated Steel |
Interchangeability
Cross-reference examples include:
- Faster CVE Series Type
