Cixi Poolke Hydraulic Pneumatic Co., Ltd. is one of the leading manufacturers and suppliers of kis pp hydraulic quick couplings in China. We are committed to providing high quality customized service to global clients. Please feel free to wholesale the newest kis pp hydraulic quick couplings from our factory.
Push Pull Hydraulic Quick Coupling – KIS-PP Series
The KIS PP Hydraulic Quick Couplings from the POOLKE KIS-PP Series is designed for fast and reliable hydraulic connection in applications requiring convenient operation and secure locking. Manufactured according to ISO 7241-1 Series A requirements, this series adopts a push-pull sleeve design that allows quick connection and disconnection without the need for additional tools.
The KIS-PP Series features a durable steel construction, precision-machined components and a reliable locking mechanism to ensure stable performance in mobile and industrial hydraulic systems. The KIS PP Hydraulic Quick Couplings provides an efficient connection solution for equipment requiring frequent hydraulic line changes, easy maintenance and dependable operation.
Key Features
ISO 7241-A Standard Compatibility
Designed according to ISO 7241-1 Series A specifications, providing compatibility with commonly used ISO A hydraulic coupling systems.
Push-Pull Connection Design
The double-acting sleeve design allows push-to-connect or pull-to-disconnect operation, improving connection efficiency and user convenience.
Fast and Easy Operation
The push-pull mechanism supports quick connection without manual sleeve operation, making it suitable for applications requiring frequent coupling changes.
Durable Construction
The coupling and nipple are precision machined from solid bar stock, with critical parts induction hardened to improve wear resistance and service life.
Reliable Locking Performance
The sleeve locking structure helps prevent accidental disconnection and maintains secure connection during hydraulic system operation.
Flexible Configuration Options
Available with different end connections, including ISO, DN, SAE and BS thread options, to meet various hydraulic installation requirements.
Applications
The KIS PP Hydraulic Quick Coupling is suitable for:
- Construction machinery
- Agricultural machinery
- Hydraulic attachments
- Mobile hydraulic equipment
- Industrial hydraulic systems
- Hydraulic power units

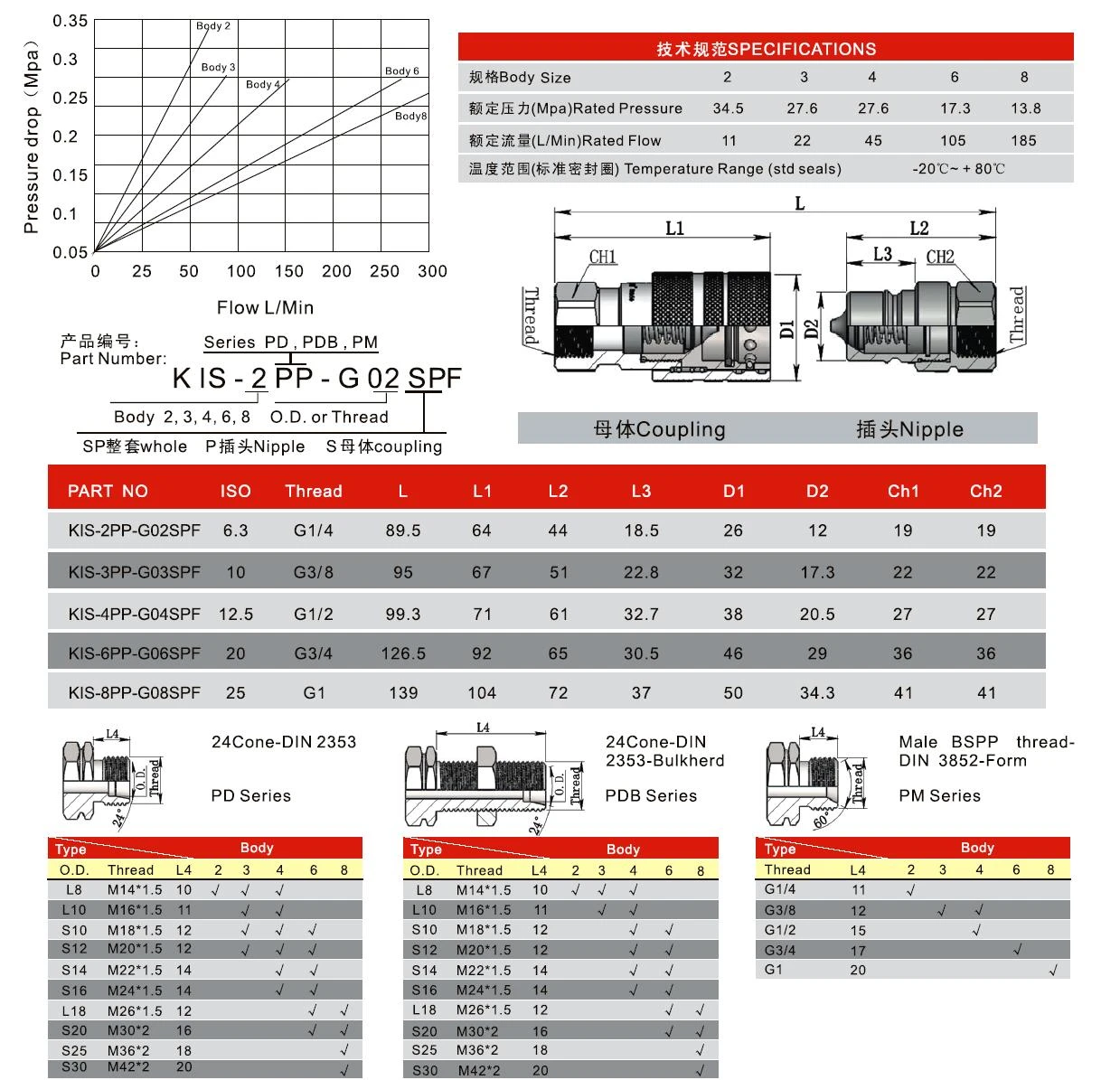

Technical Overview
| Series | KIS-PP | Material | Zinc Chromate Plated Steel |
| Standard | ISO 7241-1 Series A | Nipple Material | Hardened Steel |
| Valve Type | Poppet Valve | Seal Material | NBR |
| Locking Type | Push-Pull Sleeve Lock | Temperature Range | -20°C to +100°C (depending on seal material) |
| Connection Type | Threaded Connection |
Interchangeability
Cross-reference examples include:
- Parker 2000 Series Type
- Faster CPV-CNV Series Type
- Hydac HP Series Type
